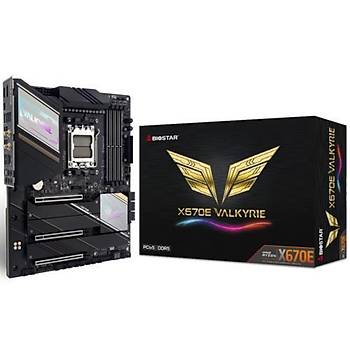

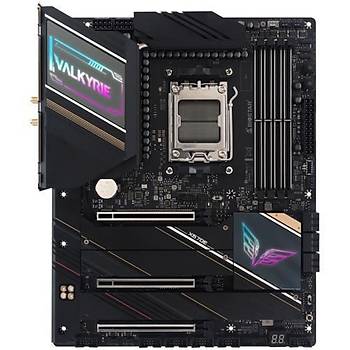

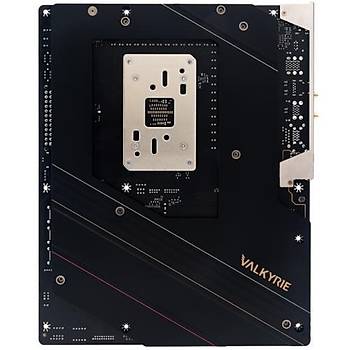

Biostar X670E VALKYRIE DDR5 6000Mhz OC S+V+2.5GL AM5 (ATX) DP, HDMI, PCI-e M.2 5.0 (128Gb/s),1x PCIe 4.0 LGA 1718p

 Supports Ryzen 7000 series processors (AM5) ? AMD X670E Chip Architecture ? Supports DDR5 Memory ? Support AMD EXPO? Technology (Extended Profiles for Overclocking) & XMP ? 22 Phase & 105A Dr.MOS Power Design ? 2 PCIe 5.0 x16 slots, 1 PCIe 4.0 x16 slot ? 6 SATA3, 2 M.2 (PCIe Gen5 x4), 2 M.2 (PCIe Gen4 x4) ? Graphics Output Options: HDMI 2.1 & Display 1.4 ? 1 Rear USB 3.2 Gen2x2 Type-C, 9 Rear USB 3.2 Gen2 Type-A ? Realtek® ALC1220 7.1 CH HD Audio Codec, Gold Audio Caps ? Intel® I225V 2.5G Ethernet LAN Chip ? Supports SMART BIOS UPDATE button & SMART BIOS UPDATE USB port

PU SUPPORT Socket AM5 support AMD Ryzen? 7000 series Processors Support for future AMD Ryzen processors with BIOS update *

MEMORY AMD Ryzen 7000 series Processors: Supports Dual Channel DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 4 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR5 module

NTEGRATED VIDEO Supports DX12 Supports HDCP

STORAGE 6 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 Total support 4 x M.2 Socket and 6 x SATA (6Gb/s) ports 1 x M.2 (Key M) Socket (M2M_CPU_1) : Supports M.2 Type 2280 SSD module Supports PCI-E 5.0 x4 (128Gb/s)/ 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD 1 x M.2 (Key M) Socket (M2M_CPU_2) : Support M.2 Type 2260/ 2280/ 22110 SSD module Support PCI-E 5.0 x 4 (128Gb/s) / 4.0 x 4 (64Gb/s) - NVMe / AHCI SSD 1 x M.2 (Key M) Socket (M2M_SB_1) : Support M.2 Type 2260/ 2280 SSD module Support PCI-E 4.0 x 4 (64Gb/s) - NVMe / AHCI SSD 1 x M.2 (Key M2) Socket (M2M_SB_2) : Support M.2 Type 2280 SSD module Support PCI-E 4.0 x 4 (64Gb/s) - NVMe / AHCI SSD

LAN Intel i225V (2.5G) 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC ALC1220 7.1 Channels, High Definition Audio, Hi-Fi

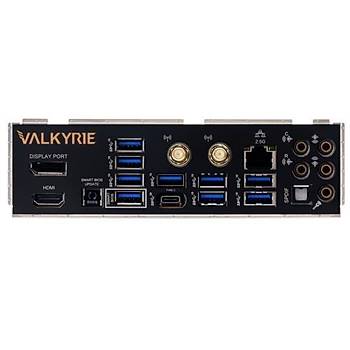

USB 2 x USB 3.2 Gen2x2 Type-C port (1 on rear I/Os and 1 via internal headers) 11 x USB 3.2 Gen2 port (9 on rear I/Os and 2 via internal headers) 4 x USB 2.0 port (4 via internal headers)EXPANSION SLOT 2 x PCIe 5.0 x 16 Slot (x16 or x8 mode) 1 x PCIe 4.0 x 16 Slot (x4 mode)REAR I/O 2 x WiFi Antenna Port 1 x BIOS update Button 1 x HDMI Port (HDMI2.1) 1 x DP Port (DP1.4) 1 x USB 3.2 (Gen2x2) Type-C Port 9 x USB 3.2 (Gen2) Type-A Port 1 x 2.5G LAN port 5 x Audio Jack 1 x SPDIF_Out INTERNAL I/O 6 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen2) Header (each header supports 2 USB 3.2 (Gen2) ports) 1 x USB 3.2 (Gen2x2) Type-C Port (each header supports 1 USB 3.2 (Gen2x2) port) 2 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 4 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Switch Button 1 x Power Switch Button 1 x Reset Switch Button 1 x COM Port Header 1 x TPM Header 1 x Thunderbolt Header 2 x LED Header (5V) 1 x LED Header (12V) 1 x IO LED Header 1 x SB LED Header * M.2 (E key) Wi-Fi card is not providedH/W MONITORING CPU / System Temperature Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring

DIMENSION ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )

OS SUPPORT Supports Windows 10 (64bit) / 11(64bit) ?Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE BullGuard

ACCESSORIES 4 x SATA Cable 1 x DVD Driver 1 x User Manual 1 x Smart Connector

Garanti  : 24 Ay
